| Model |

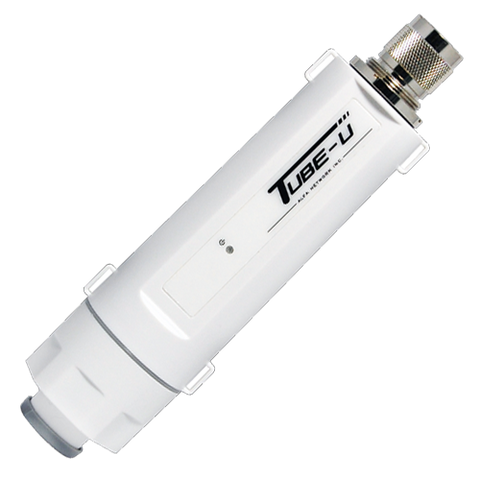

Tube-U (N) |
| Standards |
IEEE 802.11b/g/n
USB v1.0/1.1/2.0 |
| USB Cable Length |
5M |
| Data Rate |
IEEE 802.11g 54Mbps
IEEE 802.11b 11Mbps
IEEE 802.11n 150Mbps |
| Receiver Sensitivity |
IEEE 802.11n: -90dBm @ HT20
IEEE 802.11g: -92dBm @ 54Mbps
IEEE 802.11b: -95dBm @ 11Mbps |
| Antenna |
External N type Male Antenna Port |
| Frequency |
US, Canada |
2.412GHz~2.462 GHz (CH1~CH11) |
| EU |
2.412GHz~2.472GHz (CH1~CH13) |
| Japan |
2.412GHz~2.484GHz (CH1~CH14 |
| Sensitivity |
64/128-bit WEP Encryption, WPA, WPA2, TKIP, AES, Cisco CCX, WAPI-PSK, and WAPI-CERT |
| Support OS |
Windows XP/2000/Vista, Windows 7, Linux, Mac X |
| Operating Voltage |
DC 5V ±5% |
| Temperature |
Operating: 0°C ~ +50°C
Storage : -10°C ~ +65°C |
